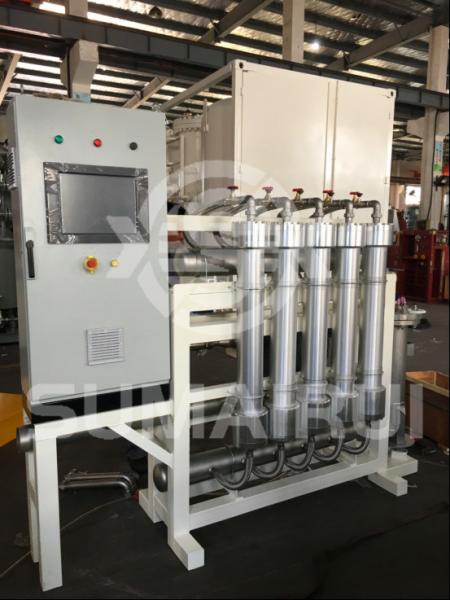

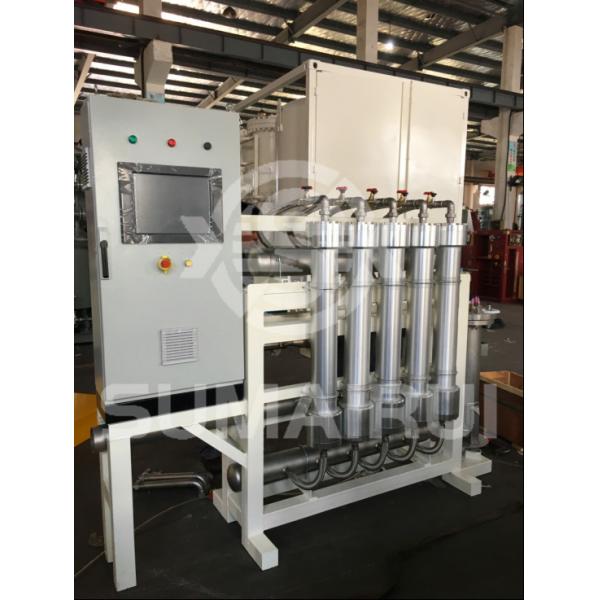

95% Purity Nitrogen Generator Membrane System 1000CFM 500PSI One Skid

Membrane nitrogen generator technology with 1000CFM 500 PSI 95% purity one skid

Compact configuration. Robust capacity. nitrogen membrane plants are a powerhouse unit capable of producing nitrogen up to 70,000 scfh with a range of purities up to 99.5% and are suitable for applications across a wide range of nitrogen needs from inerting warehouses to beverage dispensing and tire filling applications.

Our advanced selective permeating technology housed in a fully skidded unit is engineered for fast installation, low maintenance and simple operation.

Nitrogen Permeation Process

In a membrane system, a compressed air stream flows through multiple membrane modules that contain thousands of hollow membrane fibers that each removes oxygen, water, and carbon dioxide, allowing nitrogen to pass through. Membrane systems typically produce 95-99.5% nitrogen purity.

Compact design for high capacity use

Floor-mounted configuration requires no special foundations and expansion capability allows the system to accommodate increased volume requirements

Easy operation and minimal maintenance

Few moving parts, removable panels, and advanced PLC control systems enables easy access and remote operation

Efficient, cost-effective nitrogen use

Automatic shutdown during periods of low demand reduces power consumption and operating costs

Design reference :
Compressed air inlet pressure 9 bar(g)/130 psi(g)
Air quality 1.4.1 according to ISO 8573-1:2010
Nitrogen outlet pressure 7 bar(g)/101psi(g)
Nitrogen quality 1.2.1 according to ISO 8573-1:2010.
Designed working temperature max 50 ℃
Dew point at Nitrogen outlet - 50 ℃

Notes:
Compressed air inlet pressure decide membrane performance
Following request of membrane nitrogen generator will be customized :
Compressed air pressure ＞14 bar(g)/203 psi(g) max up to 24 bar(g)/350 psi(g)
Working pressure ＞24 bar(g)/350 psi(g)
Dew point ＜ - 50 ℃
Movable/containerized , plug and play
Diesel drive
Other special requirements as per site conditions
